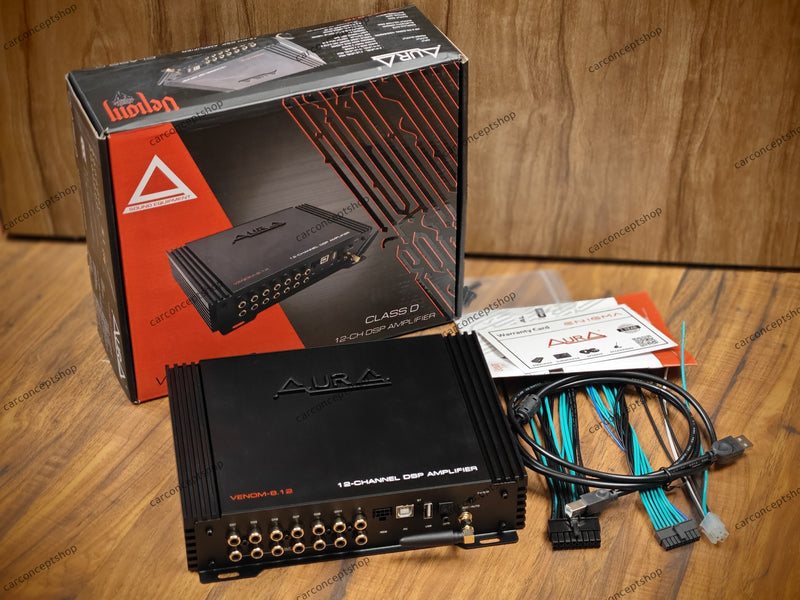

Aura Car Audio Venom 8.12 DSP Amplifier | 12 Channel DSP Processor With Built-in 10 Channel Class D Amplifier | Bluetooth 5.1
Product Overview
Transform your vehicle's sound system with the Aura Venom 8.12 DSP Amplifier, a premium all-in-one digital signal processor and Class D amplifier designed for audiophiles, professional installers, and car audio enthusiasts. Featuring a powerful 12-channel DSP architecture, 10-channel built-in amplifier, 31-band equalizer, Bluetooth 5.1 streaming, optical input, and high-resolution 24-bit/192kHz audio processing, the Venom 8.12 provides complete control over your audio system for unmatched sound quality and tuning flexibility.
Advanced 12-Channel DSP Processing
At the heart of the Aura Venom 8.12 is a powerful Cirrus Logic Smart Hi-Fi DSP platform that enables precise tuning of every speaker channel. With independent equalization, crossover control, phase adjustment, and time alignment, users can create a truly customized listening experience.
DSP Features
- 12 Output Channels
- 31-Band Parametric Equalizer
- Time Alignment up to 15ms
- Phase Control (0°–180°)
- Adjustable Crossovers
- 10 Preset Memories
- PC, Android & iOS Control
Built-In High-Power Class D Amplifier
Unlike traditional DSP processors, the Venom 8.12 includes a powerful integrated Class D amplifier capable of driving multiple speakers directly without requiring additional amplification for many installations.
Amplifier Power Output
- 8 × 50W RMS @ 4 Ohms
- 2 × 100W RMS @ 4 Ohms
- 2 × 150W RMS @ 2 Ohms
- Bridged Output: 300W RMS @ 4 Ohms
Multiple Input Options for Maximum Compatibility
The Aura Venom 8.12 is designed to integrate seamlessly with factory and aftermarket head units, making it suitable for almost any vehicle audio upgrade.
Supported Inputs
- 8 High-Level Inputs
- 2 RCA Inputs
- Optical (TOSLINK) Input
- USB Audio
- USB OTG
- USB Disk Playback
- Bluetooth 5.1 Audio Streaming
High-Resolution Audio Performance
Powered by premium Cirrus Logic and AKM audio components, the Venom 8.12 supports 24-bit / 192kHz audio processing for superior clarity, dynamics, and detail. Whether you're streaming via Bluetooth or using lossless audio formats, the DSP preserves every nuance of your music.
Key Features
Professional DSP Tuning
- 12-Channel DSP Processing
- 31-Band EQ Per Channel
- Advanced Time Alignment
- Adjustable Crossovers
Integrated Amplification
- Built-In 10 Channel Class D Amplifier
- High Output Power Delivery
- Active System Compatibility
Premium Connectivity
- Bluetooth 5.1
- Optical Input
- USB Audio Support
- Android & iOS App Control
High-Resolution Audio
- 24-Bit / 192kHz Processing
- Cirrus Logic DSP Architecture
- Studio-Grade Signal Conversion
Installation Flexibility
- OEM Integration Ready
- Aftermarket Head Unit Compatible
- Multiple Input & Output Options
Technical Specifications
| Specification | Details |
|---|---|
| Model | Venom 8.12 |
| Brand | Aura |
| Type | 8 In / 12 Out DSP with Built-In Amplifier |
| DSP Channels | 12 Outputs |
| Amplifier Type | Class D |
| Power Output | 8×50W + 2×100W RMS |
| Bridged Power | 300W RMS @ 4Ω |
| Bluetooth | Version 5.1 |
| Optical Input | Yes |
| Sampling Rate | 24-Bit / 192kHz |
| Equalizer | 31-Band EQ |
| Time Alignment | Up to 15ms |
| Frequency Response | 20Hz–20kHz |
| Presets | 10 |
| App Control | Android & iOS |
| PC Software | Supported |
| Operating Voltage | 9V–16V |
| Dimensions | 230 × 167 × 48 mm |
Why Choose Aura Venom 8.12?
All-in-One DSP & Amplifier Solution
Eliminates the need for separate DSP and amplifier units in many installations.
Competition-Level Audio Tuning
31-band equalization, crossover controls, phase correction, and time alignment deliver professional-grade tuning capabilities.
Premium Audio Processing
High-resolution 24-bit / 192kHz DSP architecture provides exceptional audio fidelity.
Flexible Connectivity
Supports OEM integration, aftermarket head units, Bluetooth streaming, optical audio, and USB playback.
Mobile App Convenience
Tune and control your system directly from Android, iPhone, or Windows PC.
Frequently Asked Questions (FAQs)
Q1. What is the Aura Venom 8.12?
The Venom 8.12 is a 12-channel DSP processor with a built-in 10-channel Class D amplifier.
Q2. Does it include a built-in amplifier?
Yes, it features an integrated Class D amplifier capable of powering multiple speakers directly.
Q3. Does it support Bluetooth audio?
Yes, Bluetooth 5.1 is built in for wireless audio streaming.
Q4. Can I tune it using my smartphone?
Yes, Android and iOS apps are supported.
Q5. Does it support optical input?
Yes, it includes a TOSLINK optical input.
Q6. How many EQ bands are available?
The Venom 8.12 features a 31-band parametric equalizer.
Q7. Does it support time alignment?
Yes, time alignment adjustments up to 15ms are available.
Q8. Can it work with factory OEM systems?
Yes, it includes high-level inputs for OEM integration.
Q9. What audio formats are supported through USB?
MP3, WMA, WAV, M4A, AAC, FLAC, and APE formats are supported.
Q10. Is PC tuning software available?
Yes, Windows-based DSP tuning software is included.
