Aura Car Audio Ac-1 Remote Controller

Product Overview

Fingertip DSP Control Right from the Driver's Seat

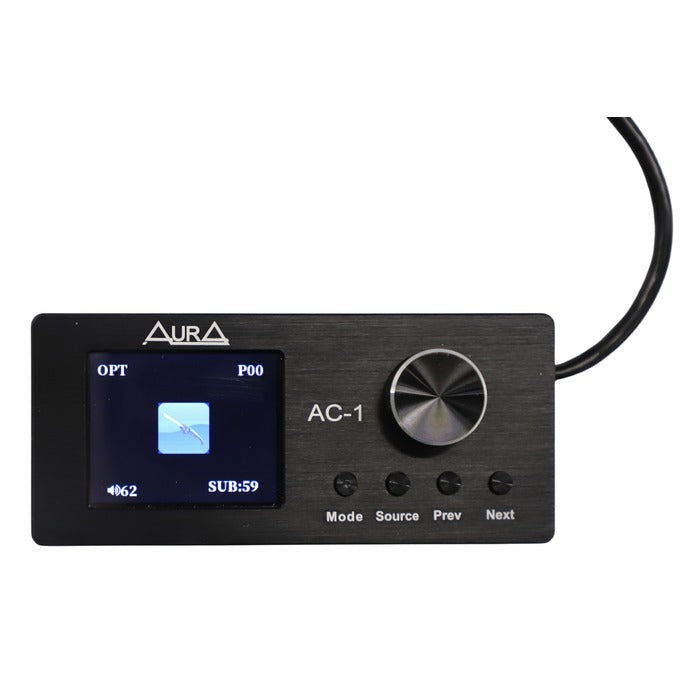

Digital Signal Processors (DSPs) are the brain of any modern high-fidelity car audio system, but adjusting settings or switching audio sources while driving usually requires opening laptop software or smartphone apps. The Aura AC-1 Remote Controller brings total operational control right to your dashboard or center console. Featuring a crisp, high-visibility 2-inch LCD screen, the AC-1 puts real-time volume management, input selection, and sound profile switching directly at your fingertips.

Seamless Source Switching & Preset Recall

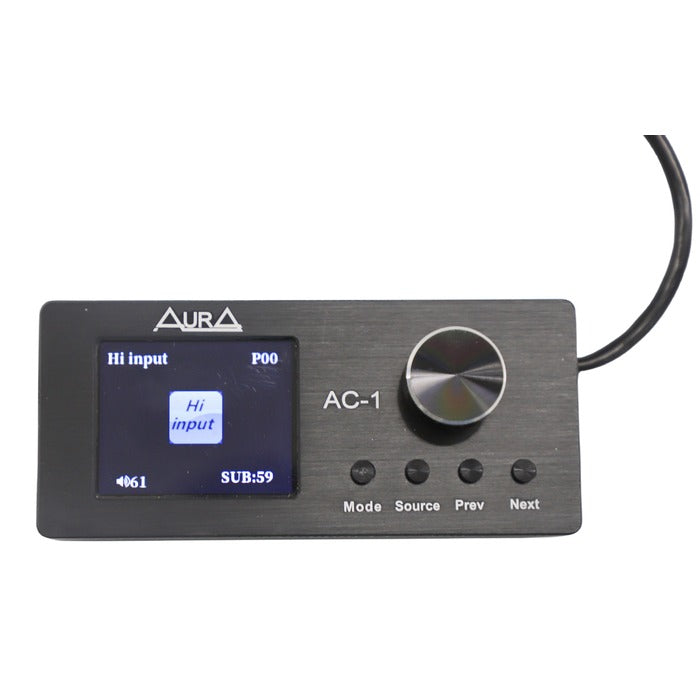

Whether you want to switch from high-level OEM head unit audio to high-resolution Optical, Bluetooth, or USB inputs, the AC-1 lets you toggle between audio streams with a single button press. Crucially, the controller allows drivers to instantly recall customized tuning presets saved on their DSP. Switch effortlessly between a driver-focused "Daily Commute" tuning profile, a wide-open soundstage for passengers, or a dedicated "High-Bass" preset without having to reconnect to tuning software.

Compact Profile with Generous Installation Reach

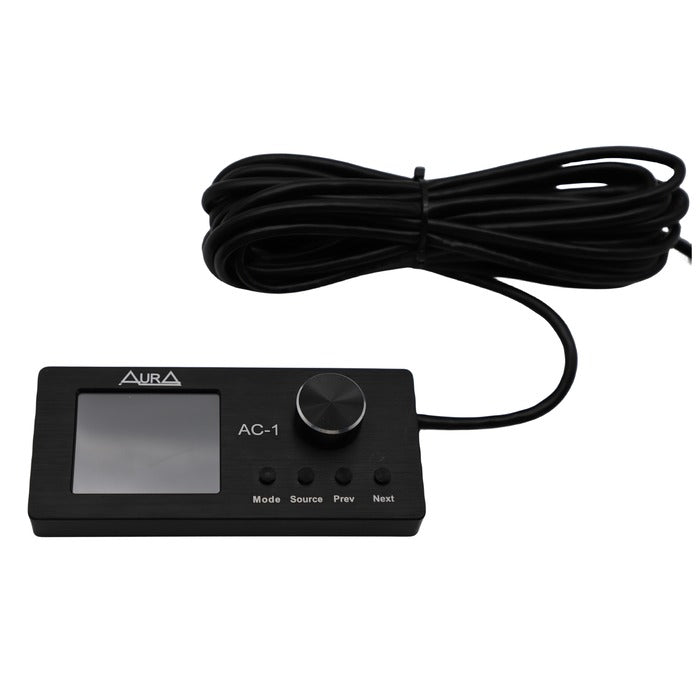

Engineered with a slim, ergonomic footprint measuring just 112mm x 49.5mm x 13mm, the Aura AC-1 integrates cleanly into any dashboard, center console cavity, or custom panel pod without cluttering your interior aesthetics. The controller includes a heavy-duty 5-meter extension cable, giving installers and DIY enthusiasts plenty of slack to execute clean, hidden wire routing through carpet channels from trunk-mounted DSP amplifiers straight up to the front cab.

Compatible with FIREBALL 6.8 8 CH DSP AMP

According to the model you purchased, the following accessories should be placed in the packing box. If there is any shortage, please inform the seller or manufacturer as soon as possible:

• Controller – 1 PC

• Instruction Manual – 1 PC

Wiring Diagram & Operations

1 YEAR BRAND WARRANTY

Frequently Asked Questions (FAQ)

Q: Is the Aura AC-1 Remote Controller universal for all car DSP brands?

A: No, the AC-1 uses proprietary data communication pins designed specifically to interface with compatible Aura DSP processors and DSP amplifiers (such as the Aura Fireball 6.8 8-channel DSP amplifier series). Always check your processor's controller port compatibility before purchasing.

Q: Can I use the AC-1 remote to adjust my subwoofer volume independently?

A: Yes! In addition to controlling master volume, the AC-1 allows you to navigate display modes to manage dedicated subwoofer output levels and switch between saved DSP scene modes on the fly.

Q: Is tuning software or a smartphone required to operate the AC-1 once installed?

A: No. While initial system tuning (such as 31-band EQ, crossovers, and time alignment) must be configured using a laptop or smartphone app, the AC-1 is designed for daily driving. Once your presets are saved to the DSP, the AC-1 handles all real-time volume adjustments, source switching, and preset toggling independently.

Q: How is the AC-1 remote controller powered?

A: The controller does not require separate power or ground splices. It draws low-voltage operating power directly from the connected DSP via the included 5-meter data cable.

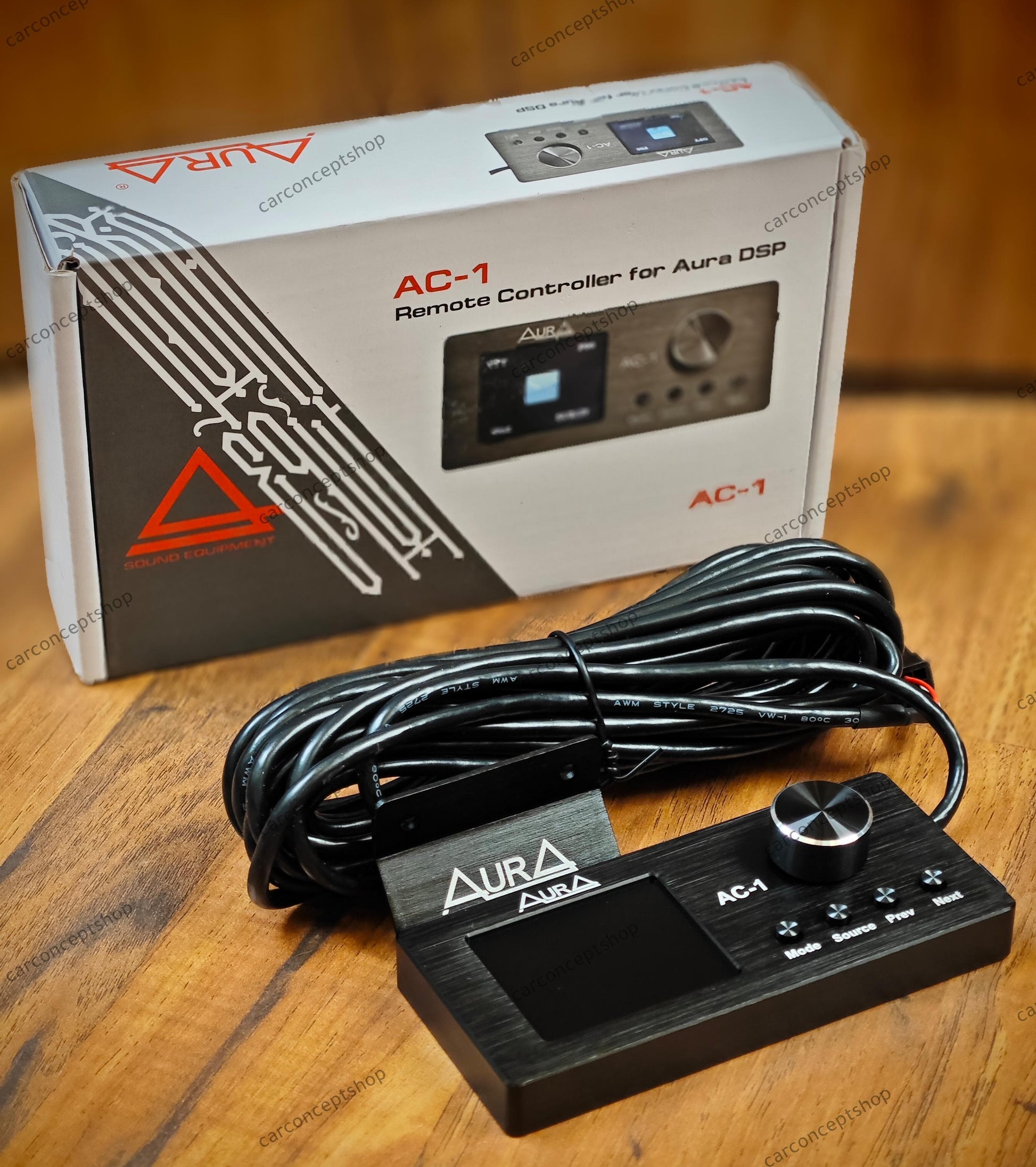

Q: What is included inside the box with the AC-1 controller?

A: The package includes 1 x Aura AC-1 LCD Remote Controller unit, 1 x 5-Meter Connection Extension Cable, and an Instruction Manual.
