Sony XM-GS100 Mono XM-GS100 | Class D Stereo Amplifier

Product Overview

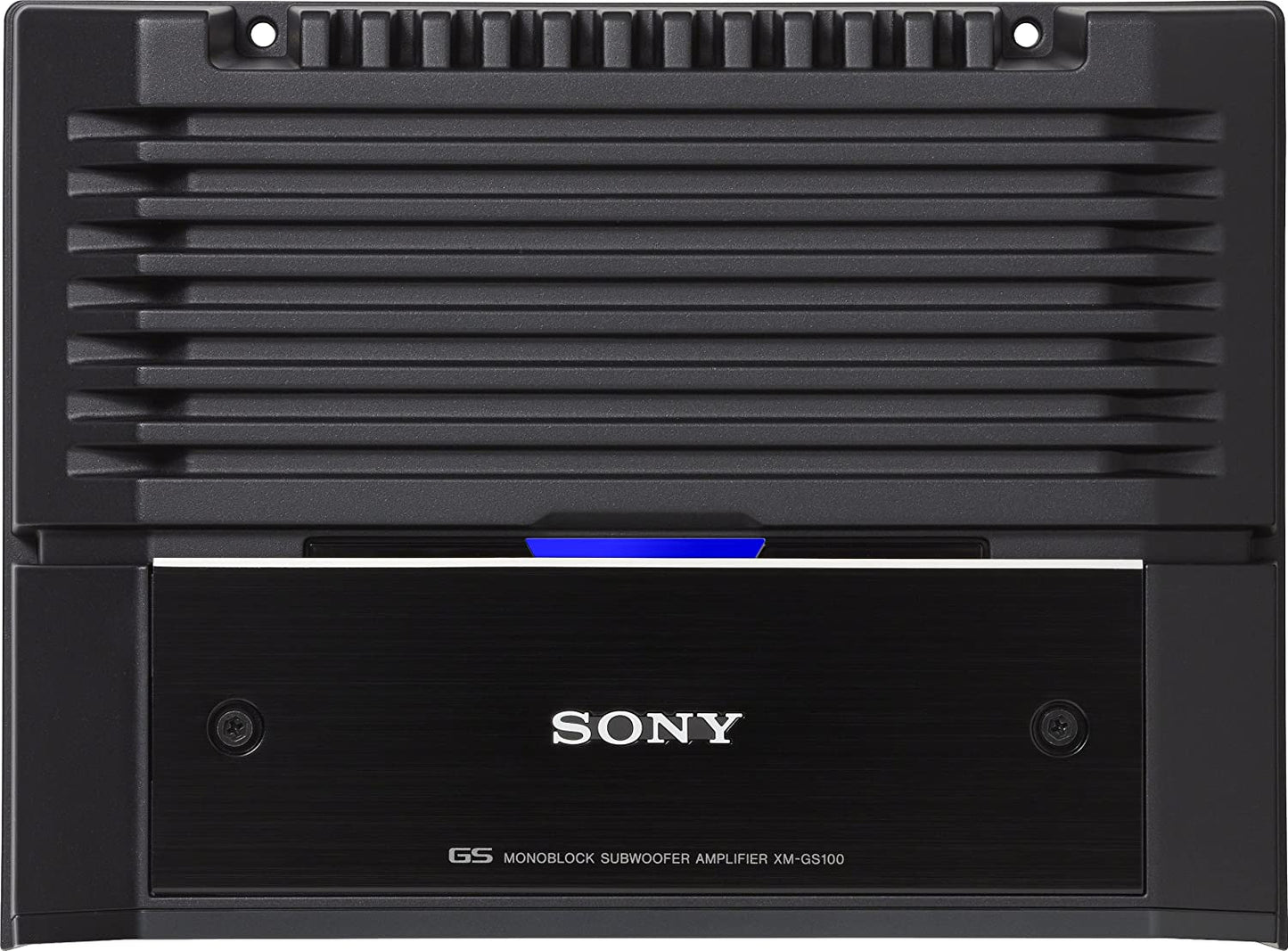

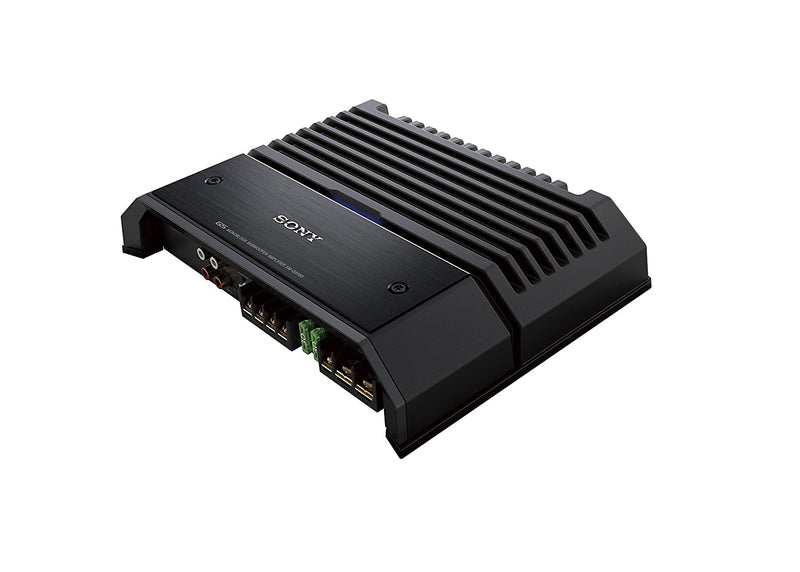

Sony XM-GS100 Mono Amplifier

The XM-GS100 amplifier’s compact framework and single-sided connections provide multiple mounting options while maximising your audio output. Integrated Active Thermal Control regulates the unit’s operating temperature for stable, long-term playback at high volume, while Dynamic Distortion Suppressor enables clear bass reproduction.

• Channel Configuration: Mono
• Max. Channel Power Configuration at 4 ohm: 600 W x 1
• Max. Channel Power Configuration at 2 ohms: 1100 W x 1
• Frequency response: 10–300 Hz
• Dimensions (W x H x D) 272 x 51 x 202 mm
• Weight 2.5 kg
• Channel Configuration Mono
• Low Pass Filter 50–300 Hz
• Low-Pass Filter Slope 12 dB/oct

Rated Output Power (RMS 20 – 20,000Hz)

Max. Channel Configuration at 4 ohm (W) / THD (%) 330 W x 1 / 1.0% (20–200 Hz)Max. Channel Configuration at 4 ohm (W) / THD (%)600 W x 1 / 1.0% (50 Hz)

Maximum Output Power (1 kHz)Max. Channel Power Configuration at 4 ohm600 W x 1

• Max. Channel Power Configuration at 2 ohms1100 W x 1
• General Features
• Frequency response10–300 HzTolerance+0.5/-3 dB
• Signal to Noise Ratio100 dB
• Total Harmonic Distortion at 1 kHz (%)0.1% (50 Hz)
• CTA Power Output 330 W x 1
• CTA SN Ratio 65 dBA
• Load Capability (ohm) NO / YES
• MOSFET YES
• Subsonic High Pass Filter YES
• Bass Boost: Frequency (0 – 10 dB) 40 Hz
• Speaker Level Input YES
• Line In: Input Sensitivity 0.3-6
• Gold Plated Connectors
• Current drain (A) — rated output power at 4 ohm30A
• Line Out YES (Through)
• What's In The Box
• Warranty card
• Instruction Manual

Frequently Asked Questions (FAQ)

Q: Can I connect the Sony XM-GS100 to a factory car stereo that doesn't have RCA outputs?

A: Yes! The XM-GS100 includes high-level (speaker-level) inputs, allowing you to tap directly into your factory speaker wires without needing an additional line output converter.

Q: Can this amplifier power regular door speakers or component speakers?

A: No. The XM-GS100 is a dedicated mono (1-channel) amplifier specifically engineered for subwoofers and low-frequency reproduction ($10\text{ Hz – } 300\text{ Hz}$).

Q: What size subwoofers can this amplifier run?

A: It can power a single 2-ohm or 4-ohm subwoofer, or dual 4-ohm subwoofers wired in parallel to 2 ohms, provided their RMS power handling matches the amplifier's $330\text{W–}600\text{W RMS}$ range.
