Recoil PW12D4 Echo Pro | 12" Dual 4-Ohm 1400W Peak Subwoofer

Product Overview

Recoil PW12D4 from the Echo Pro Series is a competition-grade 12-inch subwoofer engineered for serious bass enthusiasts. Designed to handle significant power while maintaining clarity, this dual 4-ohm driver is built to deliver deep, punchy low frequencies that transform your vehicle's audio system.

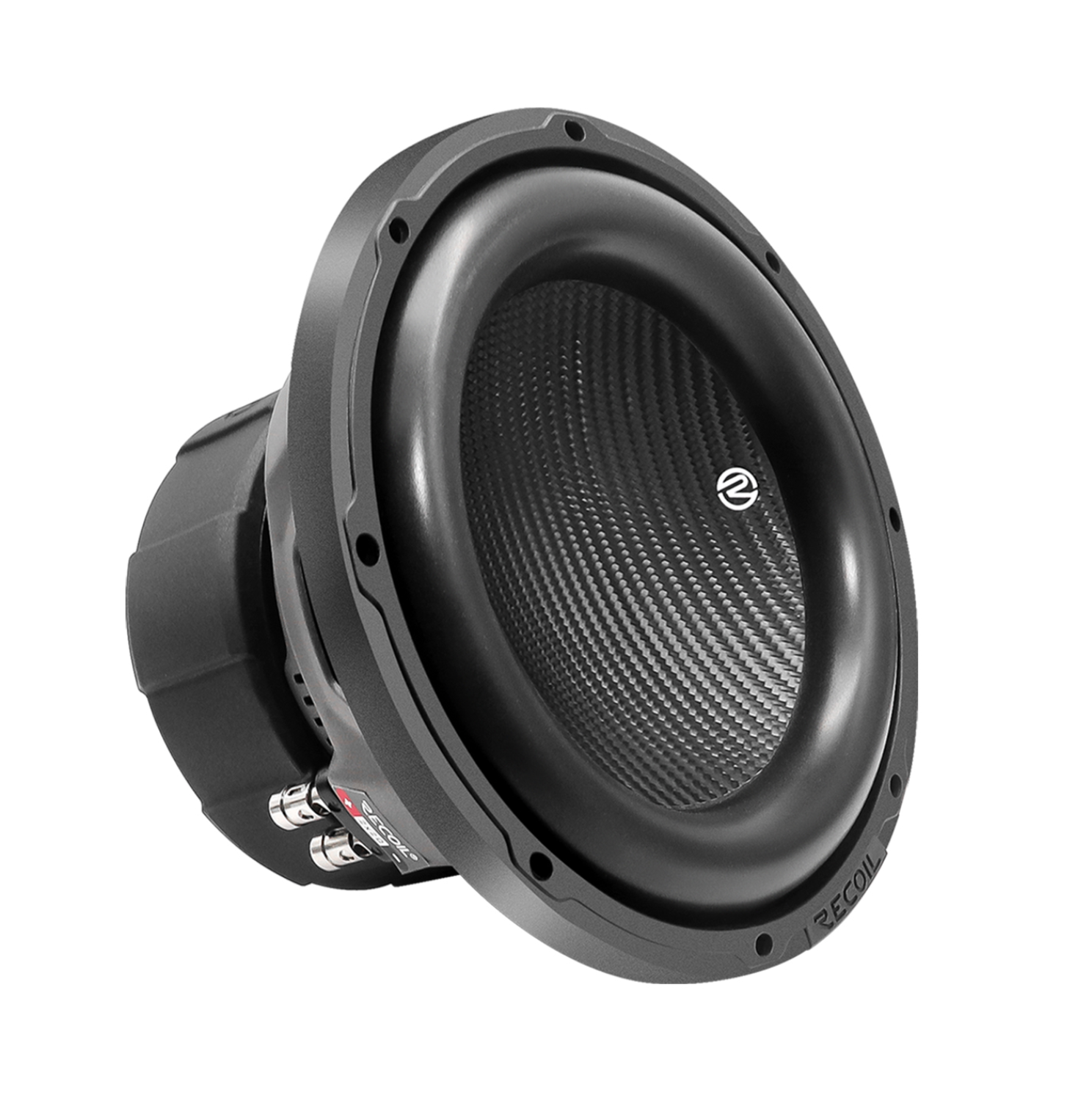

The "Echo Pro" series is characterized by its robust thermal management and high-strength construction. With a massive 2.5-inch black aluminum voice coil and a reinforced IMPP cone, this subwoofer is built to withstand extreme heat and excursion without compromising on sound quality. Whether you are aiming for hard-hitting bass or sustained low-end clarity, the PW12D4 provides the reliability and performance required for a high-output audio build.

Key Features:

• High Power Handling: Rated for 700W RMS / 1400W Peak, allowing for aggressive, distortion-free bass performance.

• Competition-Grade Design: Features a super-thick and strong IMPP cone reinforced with black stitching for long-term durability.

• Superior Cooling: Advanced vertical and horizontal airflow cooling structural design ensures efficient heat dissipation during high-power sessions.

• Thermal Management: A 2.5-inch 4-layer black aluminum voice coil coated in high-temp adhesive allows the woofer to handle power levels beyond its rated capacity.

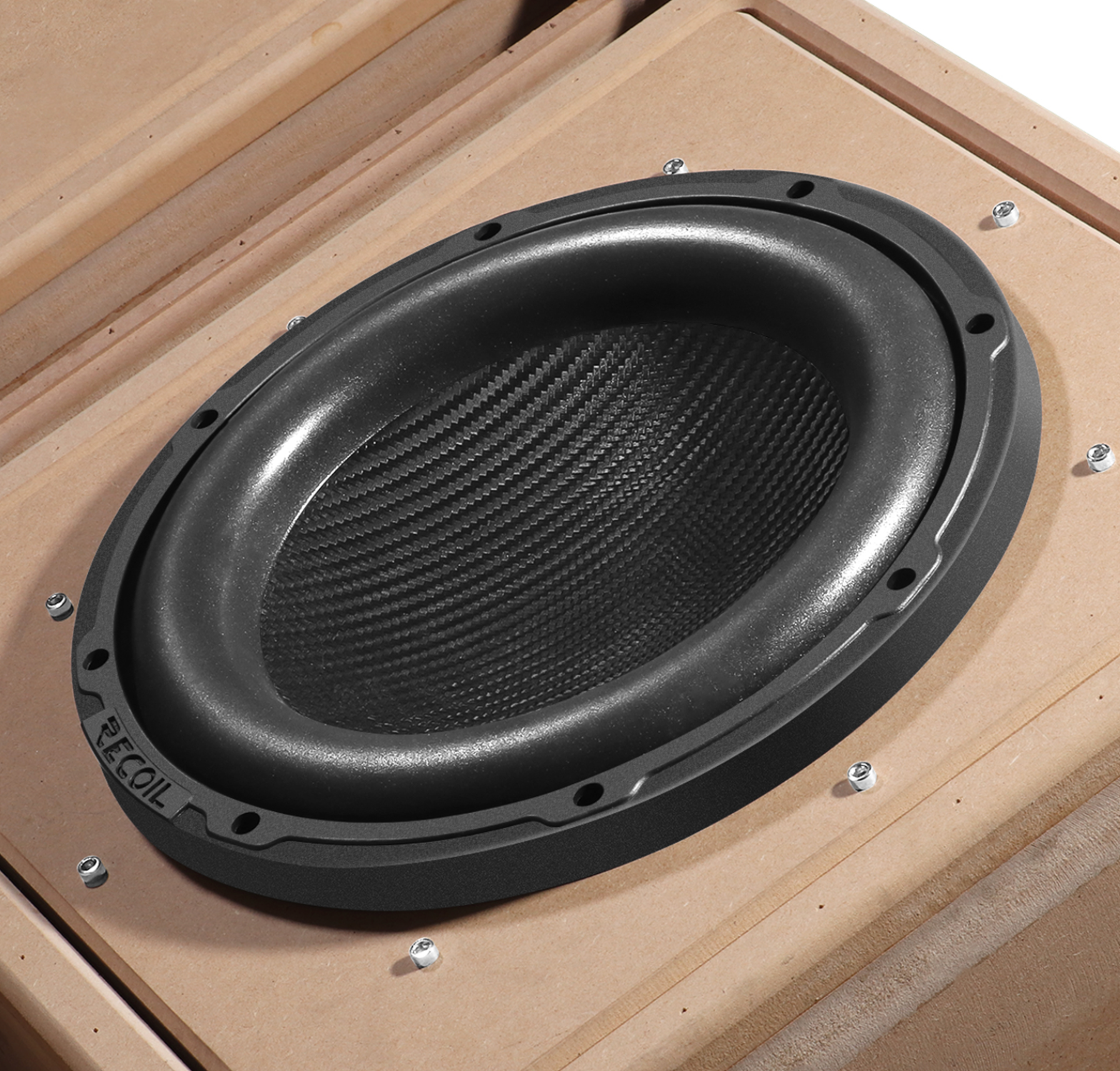

• Air-Tight Mounting: Comes with a custom Recoil basket, protective magnet cover, and a high-quality mounting gasket to ensure an air-tight installation.

Technical Specifications:

• Size: 12-inch (320.5mm)

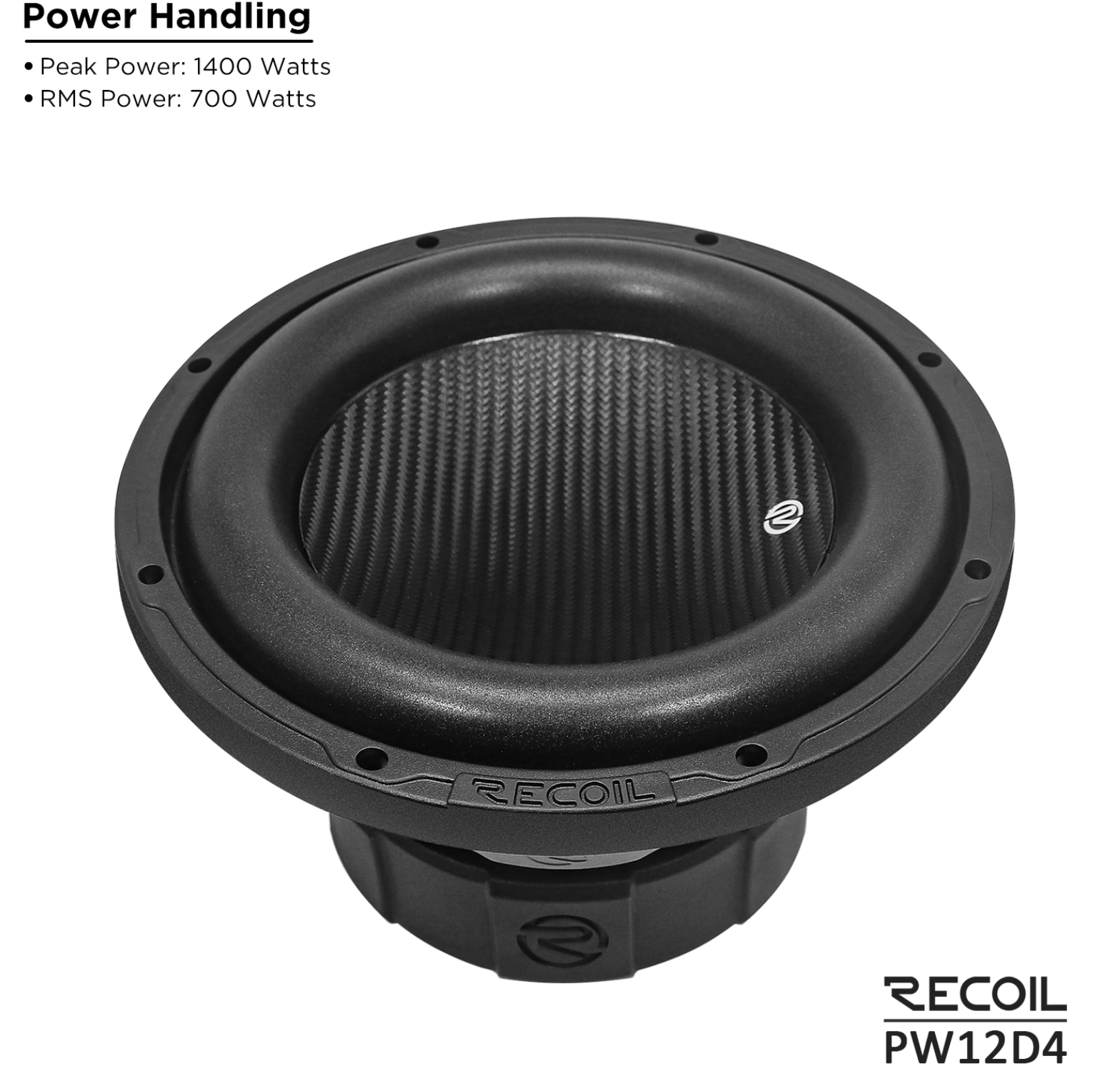

• Power Handling: 700W RMS / 1400W Peak
• Impedance: Dual 4-Ohm
• Frequency Response: 26Hz – 300Hz
• Voice Coil: 2.5-inch 4-Layer Black Aluminum
• Cone Material: High-Strength IMPP (Injection Molded Polypropylene)
• Surround Material: High-Density Foam with Black Stitching
• Mounting Depth: ~7.3 inches

Frequently Asked Questions (FAQ)

Q: How should I wire a single Recoil PW12D4 subwoofer to my monoblock amplifier?

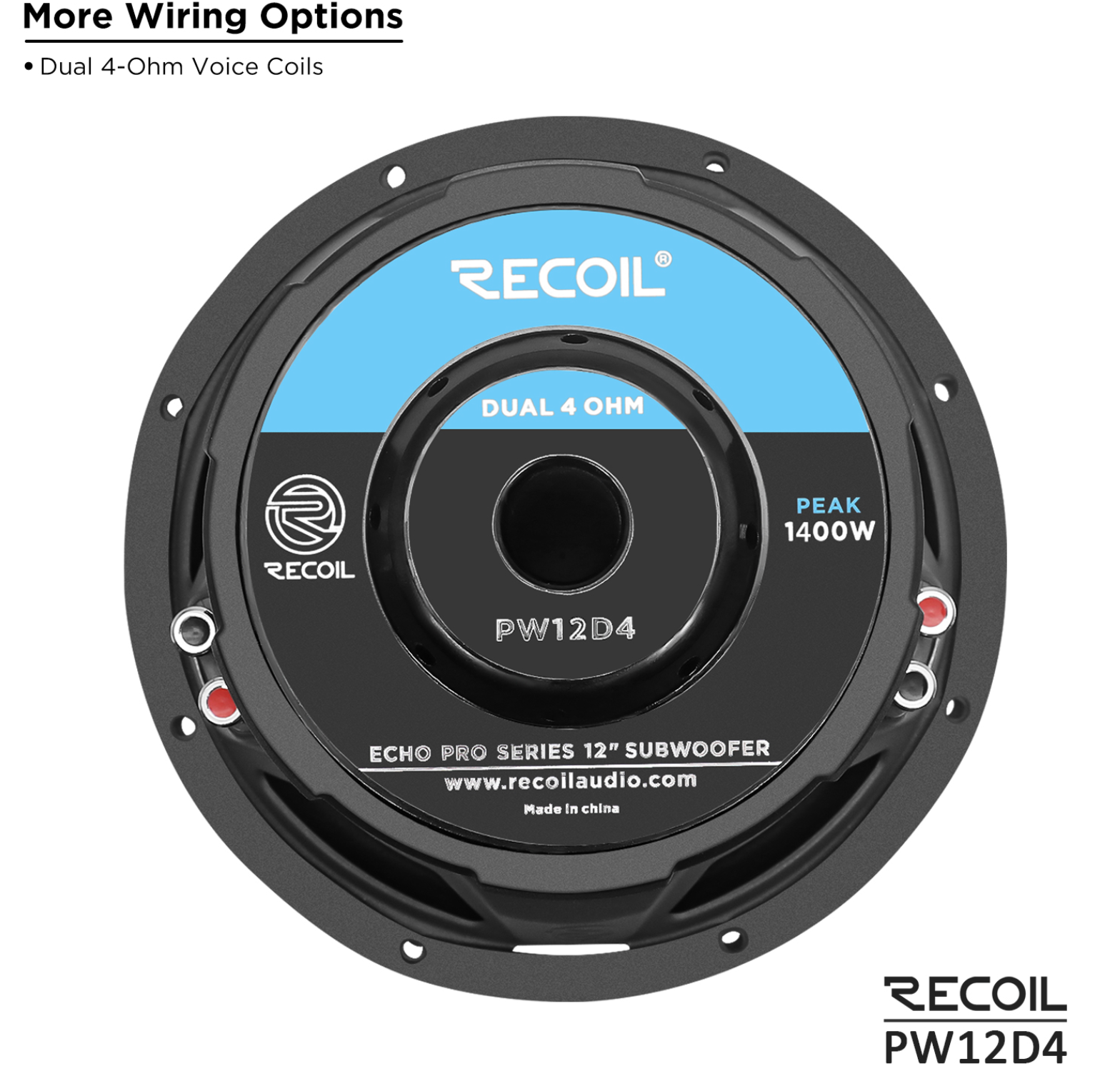

A: Because it features Dual 4-Ohm voice coils, you can wire the coils in parallel for a 2-Ohm final load, which is compatible with most standard monoblock amplifiers, or in series for an 8-Ohm final load.

Q: What size amplifier is recommended for the Recoil PW12D4 Echo Pro?

A: We recommend pairing this subwoofer with a monoblock amplifier that outputs between 600 and 800 Watts RMS at 2 Ohms.

Q: Does the Recoil PW12D4 work better in a sealed or ported enclosure?

A: It performs great in both configurations:

• Sealed Enclosure ($1.25\text{ cu. ft.}$): Delivers tight, punchy, accurate bass response.

• Ported / Vented Enclosure ($1.75\text{ cu. ft.}$): Delivers louder SPL output and deeper sub-bass extension, ideal for Hip-Hop and EDM.
