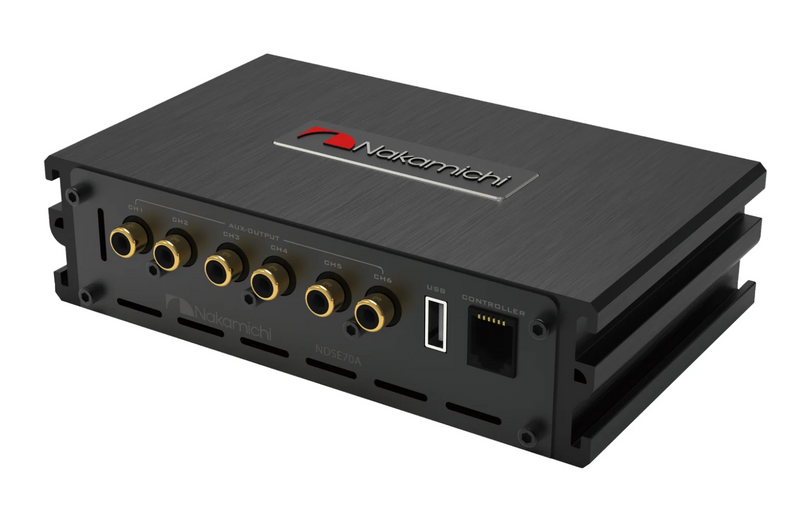

Nakamichi NDSE70A 6-Channel Digital Signal Processor

Product Overview:

Transform your factory car audio system into a high-fidelity soundstage. The Nakamichi NDSE70A is a compact yet powerful 6-channel Digital Signal Processor (DSP) designed for enthusiasts who want to bridge the gap between basic sound and professional-grade acoustics.

Equipped with an integrated 4-channel amplifier and a sophisticated 15-band equalizer, this unit allows you to tune every detail of your music—from time alignment to precise crossover slopes—ensuring "audio nirvana" inside your vehicle.

Key Features:

• Built-in 4-Channel Amplifier: Delivers a maximum power of 4 x 50W, providing enough punch to drive your door speakers with clarity and authority.

• Advanced 15-Band EQ: Fine-tune your audio frequencies to match your car's interior acoustics and your personal listening taste.

• High & Low Level Inputs: Seamlessly integrates with both aftermarket head units and OEM factory systems.

• Bluetooth & USB Playback: Supports built-in Bluetooth for wireless streaming and a USB port for lossless music playback directly through the DSP.

• 6-Channel Low Level Output: Flexible output options to expand your system with external subwoofers or additional amplifiers.

• Compact Stature: At just 160mm x 95mm, its ultra-slim design allows for easy installation under seats or behind the dashboard.

Technical Specifications:

• Frequency Response: 20Hz – 20KHz

• Max Power Output: 4 x 50W

• Operating Voltage: DC 9V – 18V

• Input Types: 4-Channel High Level, Bluetooth, USB

• Output Types: 6-Channel Low Level (RCA), 4-Channel High Level

• Presets: 6 Preset Music Scenes for instant sound profile switching

• Dimensions: 160 x 95 x 42mm

• Weight: Approx. 0.6kg

What’s in the Box?

• 1 x Nakamichi NDSE70A DSP

• Power & Input/Output Wiring Harness

• User Manual & Installation Accessories

Frequently Asked Questions

1. What does the Nakamichi DSP do for my car audio system?

The DSP improves sound quality by providing time alignment, equalization, crossover settings, and speaker tuning for a wider and clearer soundstage.

2. Is the Nakamichi DSP compatible with factory OEM music systems?

Yes, the DSP supports high-level inputs and can integrate with most factory head units without replacing the original stereo.

3. Can I use this DSP with an aftermarket Android or touchscreen stereo?

Yes, it works with most aftermarket head units through RCA low-level inputs and outputs.

4. Does the DSP include a built-in amplifier?

Yes, the NDSE series includes an integrated 4-channel amplifier capable of powering speakers directly while also providing DSP tuning features.

5. Will this DSP improve bass performance?

Yes, proper DSP tuning improves bass response, subwoofer integration, and overall sound balance throughout the cabin.

6. Does the DSP support Bluetooth music streaming?

Yes, the DSP supports built-in Bluetooth audio streaming for wireless music playback.

7. Does it support time alignment and active crossover settings?

Yes, the DSP offers time alignment, crossover adjustment, and multi-band EQ tuning for precise speaker calibration.

8. Is this DSP suitable for component speakers and subwoofers?

Absolutely. It is designed to optimize component speakers, coaxial speakers, and subwoofer systems for balanced audio performance.
